Helorpc1LAN 8USB Industrial Mini PC 8G 128G DDR3 MSATA Support Windows7/8/10 Ubuntu Linux WIFI Wake-up on LAN Desktop Computer

Compare Wishlist

Helorpc1LAN 8USB Industrial Mini PC 8G 128G DDR3 MSATA Support Windows7/8/10 Ubuntu Linux WIFI Wake-up on LAN Desktop Computer

Name: Helorpc1LAN 8USB Industrial Mini PC 8G 128G DDR3 MSATA Support Windows7/8/10 Ubuntu Linux WIFI Wake-up on LAN Desktop Computer
SKU: 3256806306252086
Availability: InStock

in Mini PC Computer

Sku: 3256806306252086

Price range: $255.19 through $650.32

Available in stock

color

Bundle

Clear

Compare Wishlist

Description
Reviews (0)

Description

Hign-concerned Chemical: None
Processor Main Frequency: 2.2GHz
Use: Commercial
Memory Capacity: 8GB
Hard Drive Capacity: 128GB
Model Number: H30-8USB
Processor Brand: Intel
Processor Model: 15 5200U
Type: Mini Desktop
Graphics Card Type: Integrated Card
Brand Name: Helorpc
Origin: Mainland China
Certification: CE,FCC,RoHS
Type: Mini PC
CPU: I5 5200u optional 2955U/I3 4005U/I3 5005U/I5 4200U/I5 5300U/I7 4500U
Memory: Single-channel SODIMM slot support DDR3L 1066/1333/1600MHz support up to 8GB
Display: VGA+HDMI
Ethernet: 10/100/1000/Mbps Realtek 8111F, support Wake-on-LAN
Audio: using Realtek ALC662 audio control chip, support for dual-channel, stereo, Line out

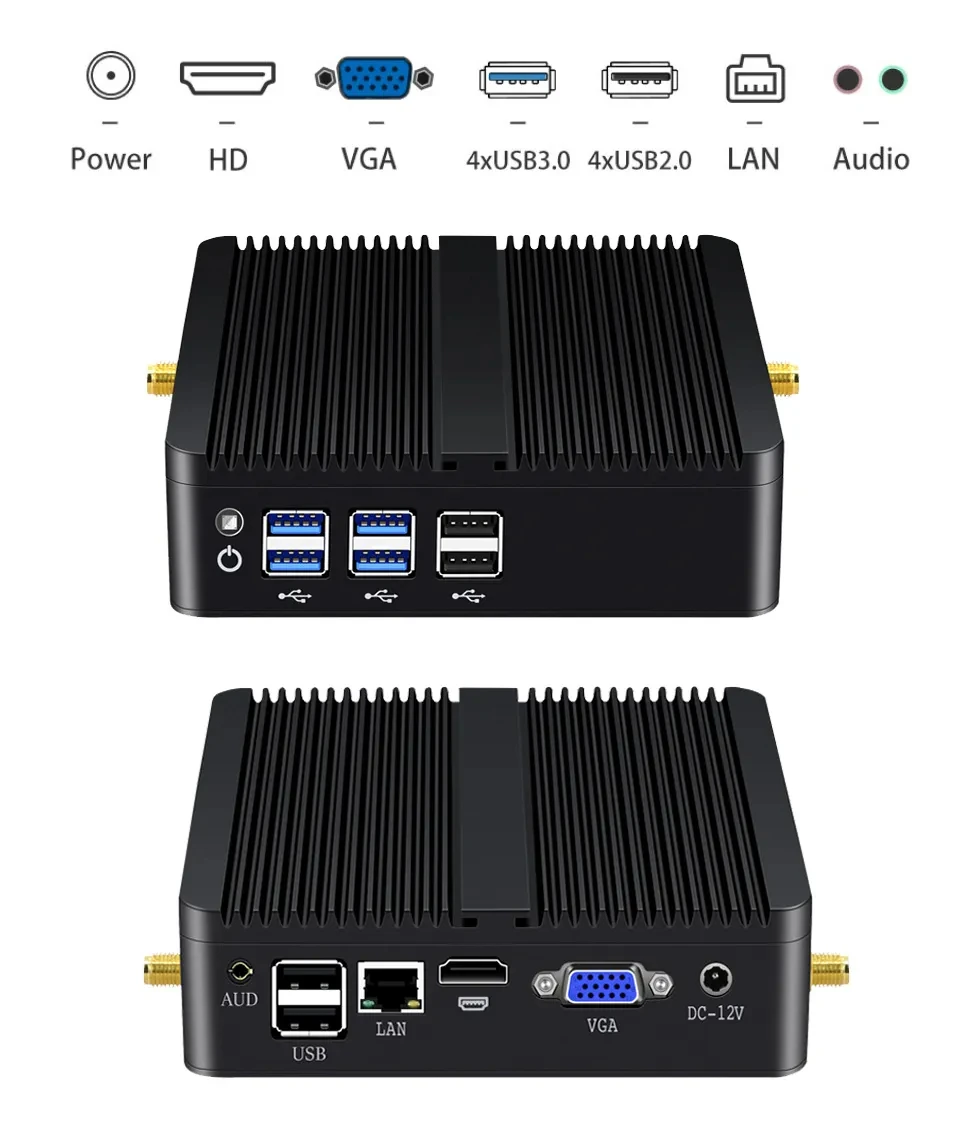

I / O interface: 4 USB3.0 4 USB2.0
Expansion: 1* half-height size Mini PCIE
Storage: support for SATA2.5 "HDD
OS Support: Windows 7 Windows 8 Windows 10 Ubuntu/LINUX/CENTOS
Power supply type: DC-IN5.5*2.5
Input Voltage: 12V
Power input: 3A
Power Adapter: DC 12V 3A/36W(AC TO DC,100~240V)
Power Consumption: 11.5W
Material: Aluminium case
Mounting: VESA/Wall Mount/Desktop Mount

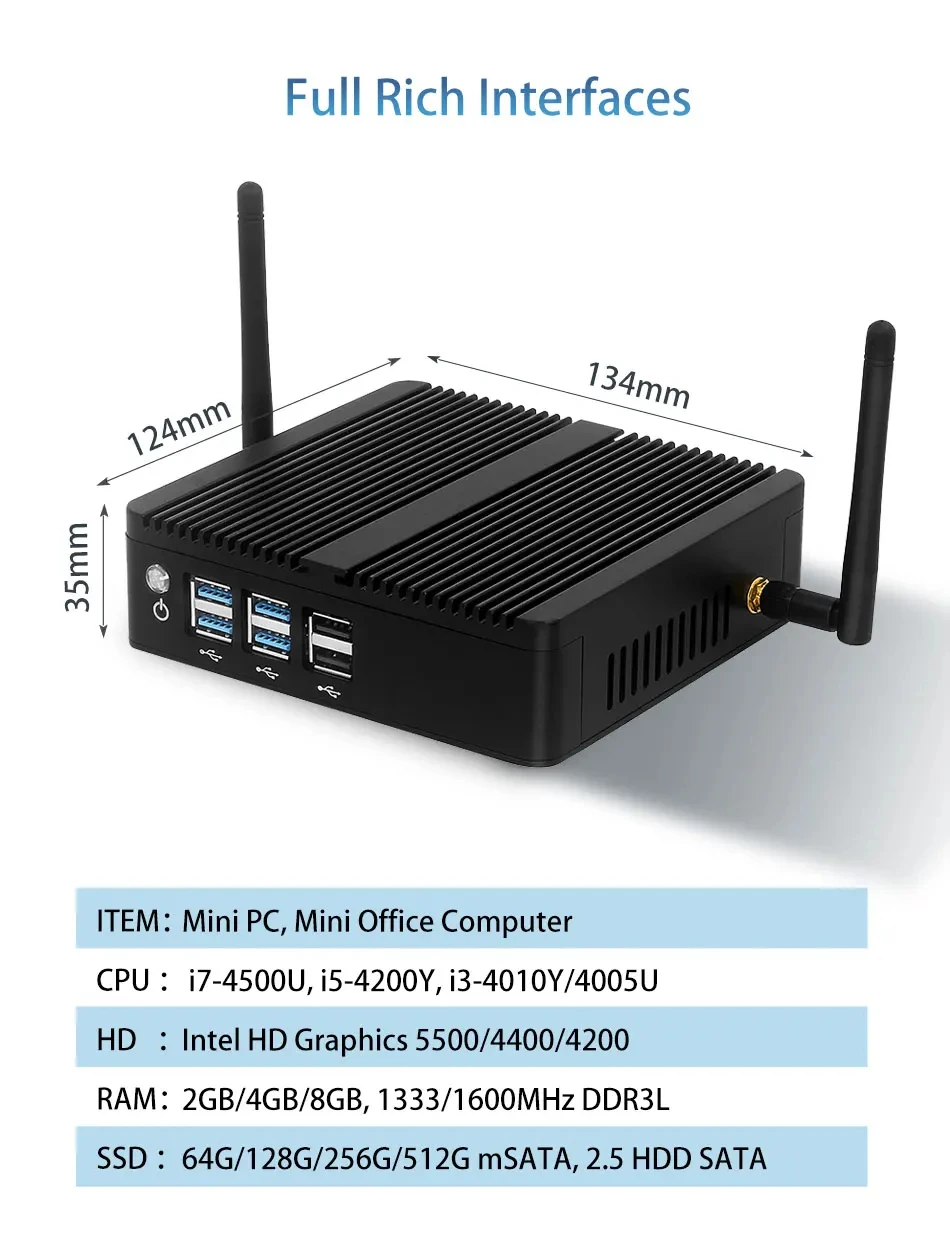

Size: 133*125*40MM
Colour: black
Weight: 0.65KG
Working Temperature: -20℃~+65℃
Storage temperature: -20℃~+75℃
Working humidity: 5%-95% relative humidity, no condensation

Note: The I5-5300U is sold out. Please purchase another model.

Processors	Intel Core i5-5200U , 3M Cache, 2 cores 4 threads,2.20GHz,up to 2.7GHz; Intel Core i3-4005U, 3M Cache,2 cores 4 threads,1.70GHz; Intel Core i3-5005U, 3M Cache,2 cores 4 threads,2.0GHz; Intel Core i5-4200U, 2M Cache,2 cores 4 threads,1.60GHz,up to 2.60 GHz; Intel Core i5-5300U, 2M Cache,2 cores 4 threads,2.30GHz,up to 2.90 GHz; Intel Core i7-4500U, 4M Cache,2 cores 4 threads,1.80GHz,up to 3.00 GHz;
Memory Type	SODIMM, DDR3L 1333/1600MHz 1.35V Max support 1x 8GB
Storage	Support 1x mSATA SSD ( defaulted install this type hard drive ) Support 1x 2.5 inch SATA HDD/SSD
Storage
Graphics	Intel HD Graphics
Network	10/100/1000/ Mbps Realtek 8111F,Support Wake on LAN , PXE boot
WiFi	300Mbps
OS Support	Windows7/8/10; Windows 10 iOT; Windows 10 Embedded; Linux, Ubuntu;



USB Ports	4x USB3.0; 4x USB2.0;
Display Port	1x VGA; 1x HDMI; Max resolution 1920*1080P;

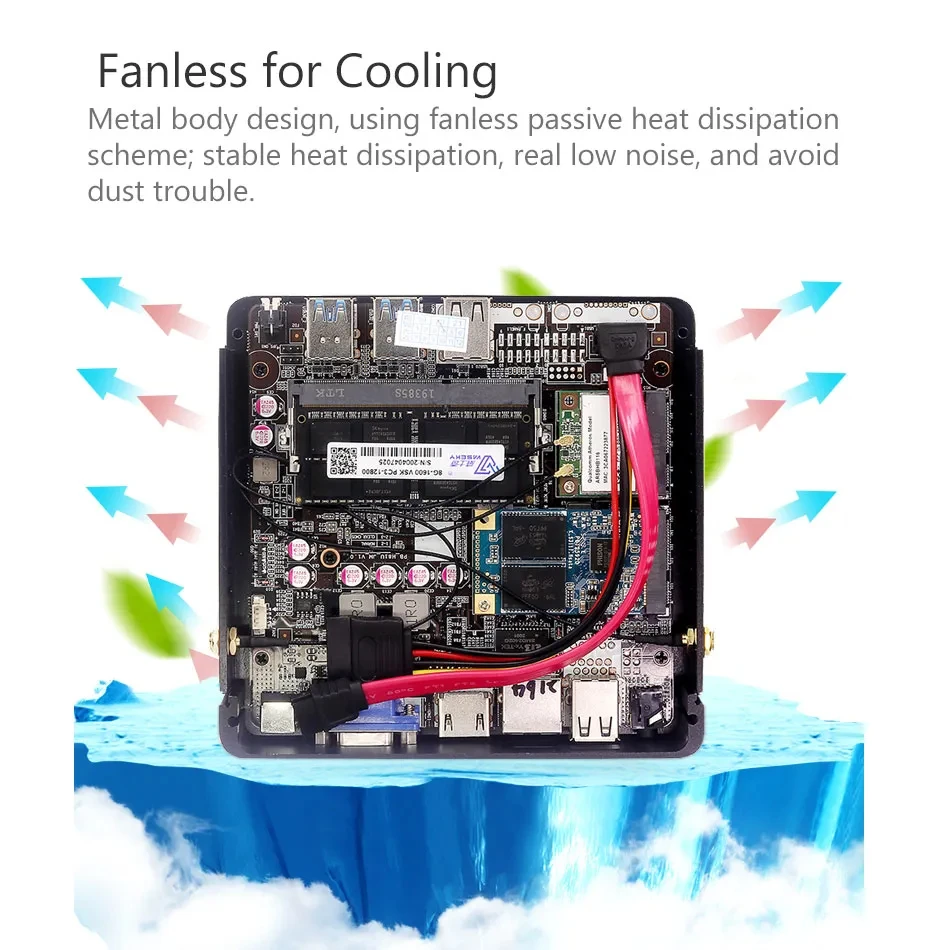

Construction	Fanless passive cooling
Case Materials	AluminumCase
Dimension	136x128x44mm
Netweight	0.85Kg
Operating Temperature	-20℃ to +60℃
RH	5%~95% @30℃，Non-condensing
Power Adapter	Input AC100-240V, Output DC12V-3A
Package List	1x Mini PC X30A; 1x AC Adapter; 1x Power cord ( EU AU US UK type plug shipped according to buyer’s address ); 1x SATA cable; 1x User manual;
